Counting machine-counting packaging system

Category:

Counting machine series

Product Accessories:


Description

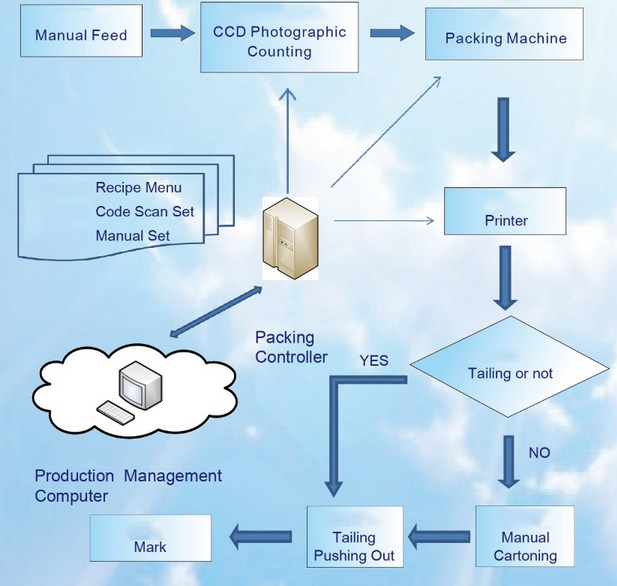

  • Introduction to Counting Packaging System







  • Main technical parameters of the counting machine

1. Object: various single items with a diameter of 10-30mm
2. Technical ability: when the diameter is ≤10mm, 500 capsules/pack 6 times/minute;
                                          300 capsules/pack 7 times/minute;
                                          200 capsules/pack 8 times/minute;
                                          100 Granules/pack 8 times/minute;
3. Accuracy: no negative error; the positive error of adding one granule is less than or equal to 1 bag within 100 bags, and there is no positive error greater than two granules . It can adapt to a variety of good fluidity and different shapes Tablets, capsules, electronic components.
4. Power & air source: single-phase 220V/50Hz compressed air 4-0.5MPa

It can be matched with Yamato packaging scale and seed packaging machine to send the weight of 1,000 grains to the packaging scale in real time. The precision of packaging by grain is higher and the raw material seeds can be saved.

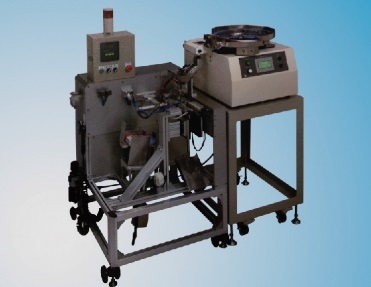

  • Small counting and packaging system (replaceable with photographic counting machine)

Main technical parameters:

1. Speed: 10 packs/minute;
2. Can be equipped with photoelectric counting machine, camera counting machine
3. Equipped with rollers, movable;
4. Configurable printer;
5. With vibration and shaking function;
6 It can be equipped with a vacuum device;
7. It
can be equipped with bags of various materials; 8. It can be equipped with a vigorous bag clamping device; 9. The special design of heat sealing does not damage the bag mouth

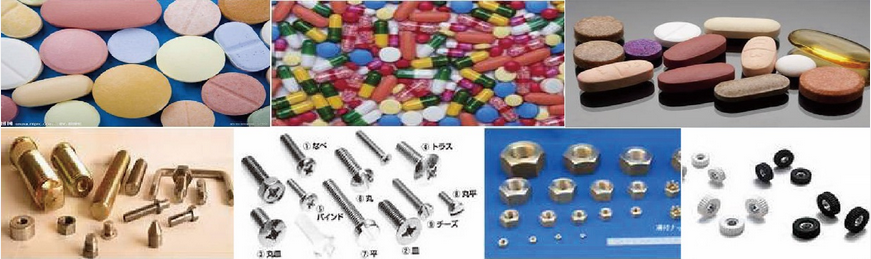

  • Examples of parts packaging for various items

Applicable to various kinds of medicines, capsules, bolts, springs, a variety of connectors and health care, mechanical and electronic parts.

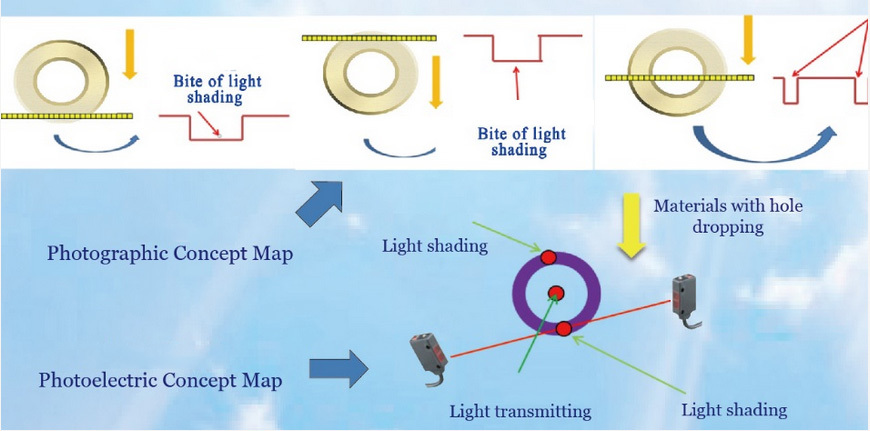

  • Photographic and photoelectric counting

Comparison of photographic and photoelectric counting (material with holes)



  • Main technical advantages
