Automatic Scale-Smart Combination Scale α Advance Series

Smart combination weigher α Advance series

Dataweigh

Structural innovation

Intelligent, durable and precise

The newly developed intelligent combination weigher Alpha Advance series (abbreviation: αA type) has stepped on a new level. The operation is easier, the structure is more durable, the weighing range is expanded, and the accuracy is higher.

The Alpha Advance series combination weigher weighs faster, with a 10-head weigher up to 75wpm and a 14-head weigher up to 140wpm with higher accuracy.

* Wide range of weighing applications.

· to raise efficiency

The novel high-frequency sensor shortens the stabilization time of the metering cycle and realizes high-speed metering.

Yamato's original AFC system (automatic feeding control system) makes the feeding method more optimized, and the accuracy and efficiency are greatly improved.

The amplitude of the improved vibrating feeder is more reasonable and can handle viscous or fragile materials.

· Environmentally friendly

RoHS compliant

· Easy to maintain

The modular drive unit contains high-performance Yamato strain sensors and a stepping motor drive system.

This modular design makes troubleshooting and maintenance easier and faster.

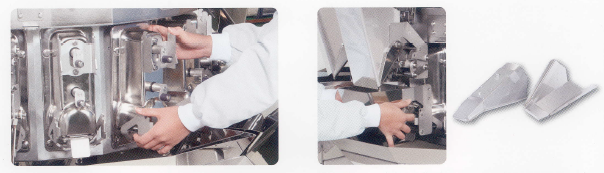

The hopper and linear vibrating plate can be easily removed or installed without tools.

The main vibration plate sensor can carry a load of up to 150kg, and the hopper has good rigidity and is not easy to deform during maintenance and cleaning.

· food safety

The large rounded hopper design makes cleaning easier and faster, which can reduce downtime. A hygienic springless hopper can be selected according to the application.

The modular drive unit adopts stainless steel seal, which is more conducive to the sanitation and cleaning of the body.

· Easy to operate

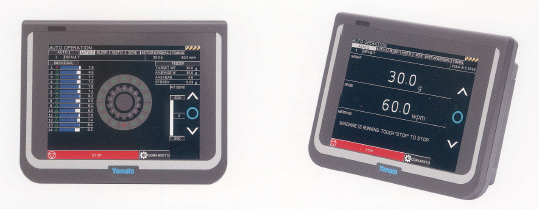

10.4 inches color touch screen, user-friendly icons make operation easy. Up to 300 pre-installed programs can be memorized. It can realize the mixed measurement of 2 kinds of products (ADW-A-0320S).

USB storage port

Data acquisition and program update can be easily achieved.

Self-check function: Important system status, including voltage, input/output status, software version and analog/digital converter, can be monitored and diagnosed through the color touch screen operation interface.

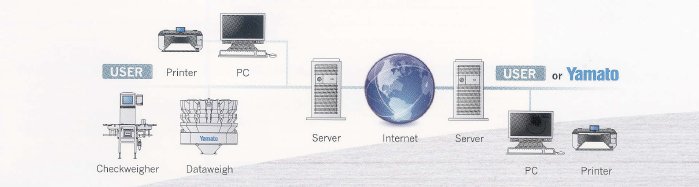

· Remote control and data acquisition function (optional):

The PC can be remotely controlled via the local area network.

Get data through USB, Ethernet or RS232C port.

The weight feedback function between the sorting scale and the combination scale.

• Output control function

Enter the number of bags of a certain formula you want. When the output reaches this value, the formula of the scale can automatically switch to the next target.

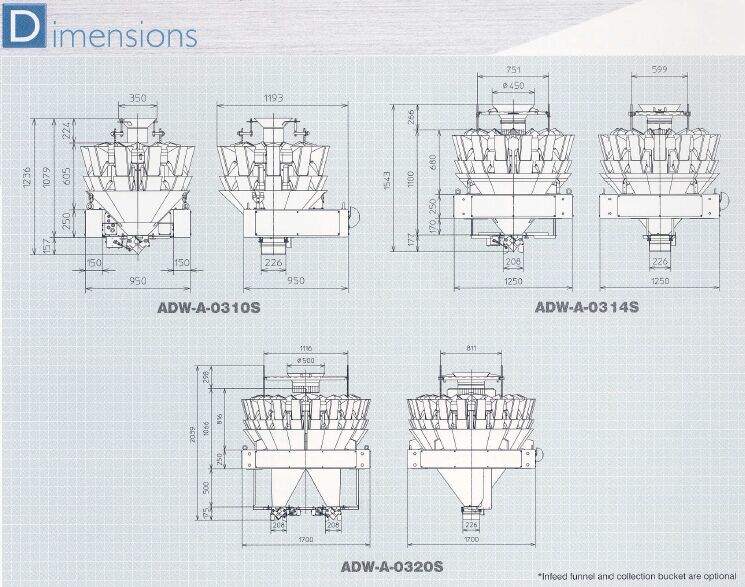

• size

*Optional stainless steel universal base.

• Specification model
