Iron and steel industry-GM-BSC22 series pressure-resistant metering coal feeder
Release time:
2016-12-01 15:41
Classify:
Steel industry
Visits:
GM-BSC22 series pressure-resistant metering coal feeder

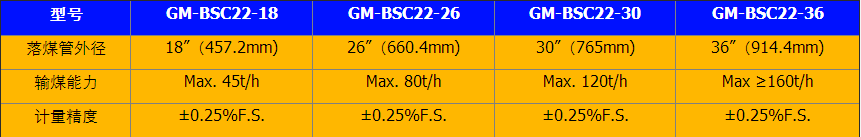

♦ Technical parameters
♦ Features
- Widely used in ultra-supercritical, supercritical, subcritical 1000MW, 660MW, 350MW thermal power generating units and CFB circulating fluidized bed boilers
- Widely used in thermal power plants to continuously and evenly quantify coal from coal storage bins to pressure coal mills or CFB boilers
- Yamato's world's top technology & chief drafter of the latest national standards for coal feeders
- Passed IEC-Ex international explosion-proof certification
- Passed TUV CE EU certification
- A new generation of high-precision dust explosion-proof structure load cell DUB2S (digital), no need to re-calibrate after replacing the sensor
- The fourth generation coal feeder special control instrument CFC-320 (digital), with touch screen, color chart, four language representations in Chinese, English, Japanese and Korean, digitization and other advanced functions, fully supports analog or digital weighing sensors, It can be seamlessly interchanged with the CFC-300/301/310 instruments of Shanghai Dahe, and the operation is basically similar.
- Digital weighing instrument is combined with digital weighing sensor to improve measurement accuracy and control accuracy simultaneously
- A new generation of ball screw type import and export electric coal gates, with strong sealing, self-cleaning and maintenance-free, ensuring no clogging or jamming
- The coal gate drive adopts screw drive, which is the "three non-coal gates" that does not maintain, slip, or jam;
- The sensor is calibrated by the hand-cranked semi-automatic code hanging device, which can be calibrated at will in the running state, without opening the inspection window and the coal feeder door
- With automatic alarm function for belt breakage and cleaning chain breakage
