Electric power industry-GM-BSC22 series pressure-resistant metering coal feeder
Release time:
2016-11-24 09:05
Classify:
Power industry
Visits:

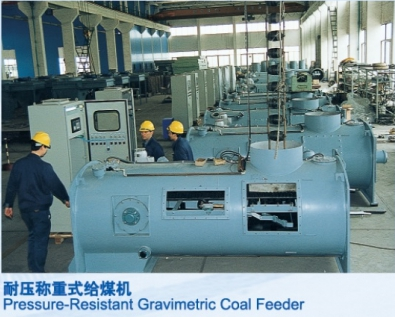

Pressure-resistant weighing coal feeder
♦ Features
Application of ultra-supercritical, supercritical, subcritical 1000MW, 660MW, 350MW thermal power generating units and CFB circulating fluidized bed boilers
It is suitable for continuous and uniform coal dosing in thermal power plants from coal storage bin to pressure coal mill or CFB boiler
Yamato technology & coal feeder national standard drafting expert
Passed IEC-Ex international explosion-proof certification
Pass TUV CE EU certification
A new generation of high-precision dust explosion-proof structure load cell DUB2S (digital), no need to re-calibrate after replacing the sensor

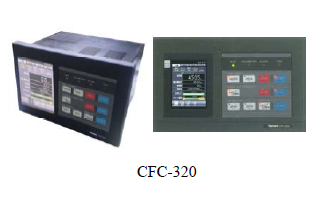

The fourth generation coal feeder special control instrument CFC-320 (digital), with touch screen, color chart, four language representations in Chinese, English, Japanese and Korean, digitization and other advanced functions, fully supports analog or digital weighing sensors, It can be seamlessly interchanged with Shanghai Dahe CFC-300/301/310 instruments, and the operation is basically similar;
The digital weighing instrument is combined with the digital weighing sensor to improve the measurement accuracy and control accuracy simultaneously;
A new generation of ball screw type import and export electric coal gates, with strong sealing, self-cleaning and maintenance-free, ensuring no blockage or jamming;
The coal gate drive adopts screw drive, which is the "three non-coal gates" that does not maintain, slip, or jam;
The hand-cranked semi-automatic code-hanging device calibrates the sensor, which can be calibrated at will in the running state, without opening the inspection window and the coal feeder door;
It has automatic alarm function for belt breakage and cleaning chain breakage.
