Pharmaceutical industry-counting and packaging system
Release time:
2016-12-02 09:46
Classify:
Pharmaceutical industry
Visits:
Pharmaceutical industry-counting and packaging system
Automatic counting and packaging of medicine/health products

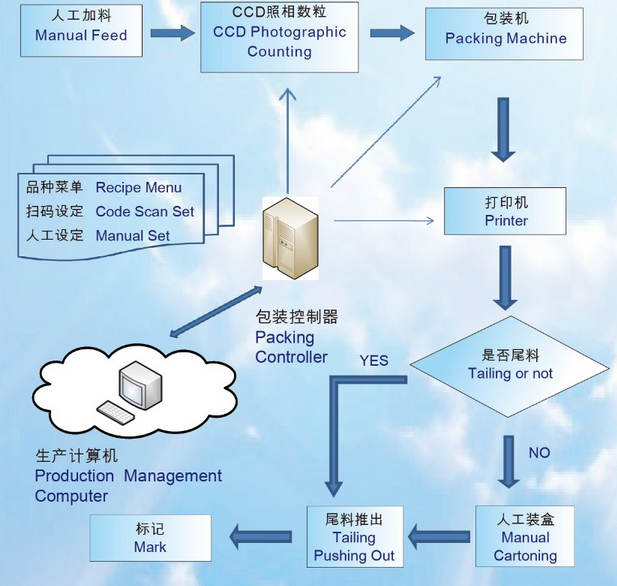

Introduction to counting packaging
Main technical parameters of the counting machine
1. Object: various single items with a diameter of 10-30mm
2. Technical ability: when the diameter is ≤10mm, 500 capsules/pack 6 times/minute;
300 capsules/pack 7 times/minute;
200 capsules/pack 8 times/minute;
100 Granules/pack 8 times/minute;
3. Accuracy: no negative error; the positive error of adding one granule is less than or equal to 1 bag within 100 bags, and there is no positive error greater than two granules . It can adapt to a variety of good fluidity and different shapes Tablets, capsules, electronic components.
4. Power & Air: Single-phase 220V/50Hz compressed air 4-0.5M Pa

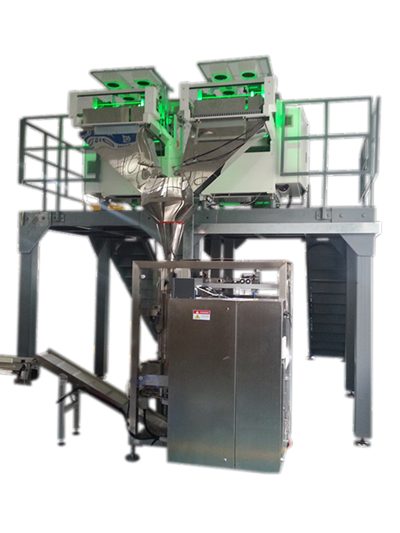

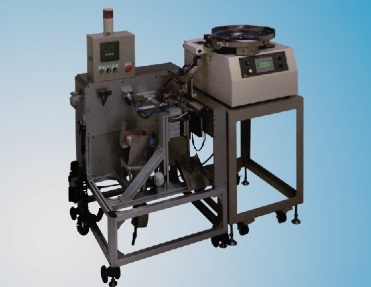

Small counting and packaging system (replaceable with photographic counting machine)
The main technical parameters:
1. Speed 10 packs/min
2. It can be equipped with photoelectric counting machine or CCD linear camera counting machine
3. With vibration bag shaking function
4. Equipped with rollers, movable
5. Configurable printer
6. With vibration bag shaking function
7. Feed the bag, pre-made bags of various materials
8. Can be equipped with strong bag clamping device
9. Special design of heat sealing, will not damage the bag mouth
Examples of parts packaging for various items
It can be applied to various medicines, capsules, bolts, springs, connectors and various medical and health care, machinery, and electronic components.
Photographic and photoelectric counting

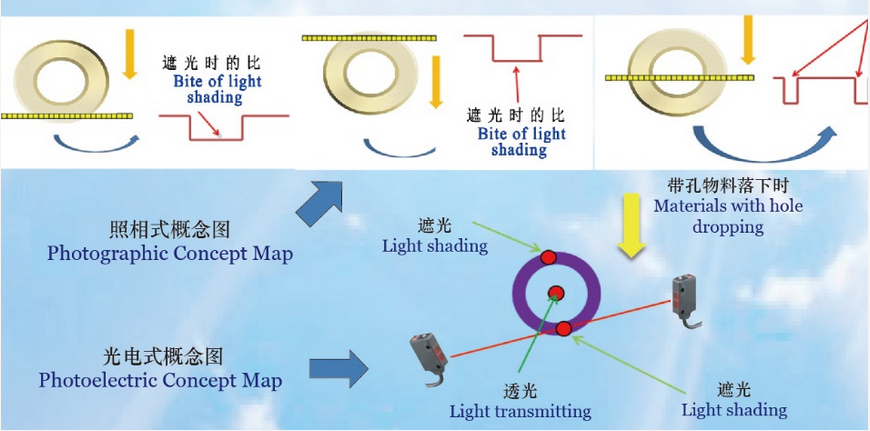

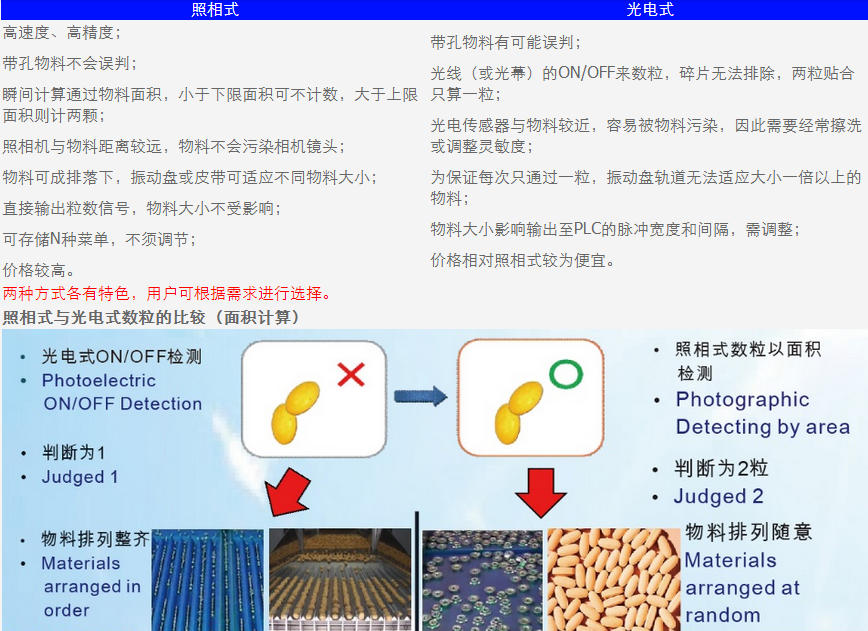

Comparison of photographic and photoelectric counting (material with holes)
Main technical advantages
