Auto parts industry-counting packaging system
Release time:
2016-12-02 14:44
Classify:
Chemical industry
Visits:

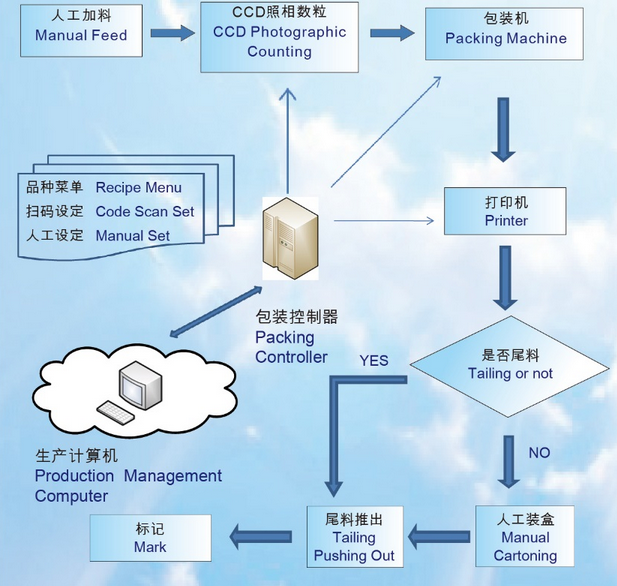

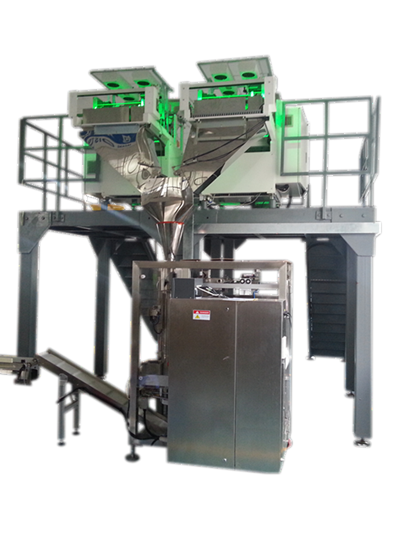

Counting packaging system
Total number of packaging Profile
Main technical parameters of the counting machine
1. Object: various single items with a diameter of 10-30mm
100 capsules/pack 8 times/min;
3. Power & air source: single-phase 220V/50Hz compressed air 4-0.5MPa
4. Accuracy: No negative error; the positive error of adding one tablet is less than or equal to 1 package within 100 packs, and there is no positive error greater than two tablets. It can be adapted to a variety of tablets, capsules and electronic parts with good fluidity and different shapes.

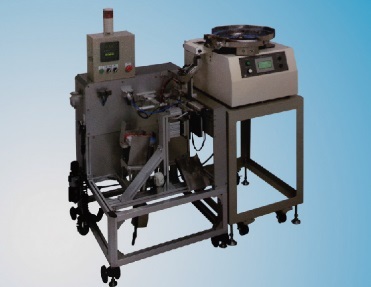

Small counting and packaging system (replaceable with photographic counting machine)
Main technical parameters:
1. Speed: 10 packs/minute;
2. Can be equipped with photoelectric counting machine, camera counting machine
3. Equipped with rollers, movable;
4. Configurable printer;
5. With vibration and shaking function;
6 It can be equipped with a vacuum device;
7. It
can be equipped with bags of various materials; 8. It can be equipped with a vigorous bag clamping device; 9. The special design of heat sealing does not damage the bag mouth
.

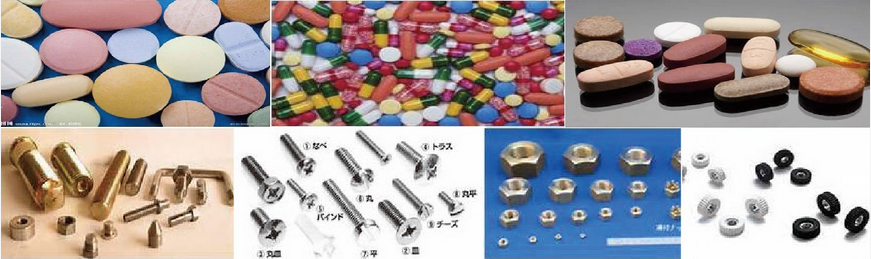

Examples of parts packaging for various items
It can be applied to various medicines, capsules, bolts, springs, connectors and various medical and health care, machinery, and electronic components.

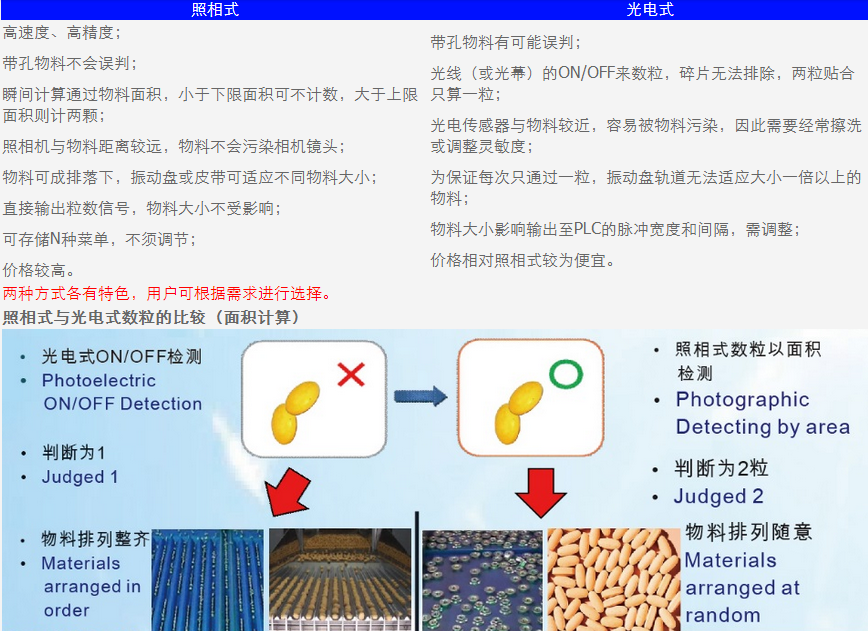

Photographic and photoelectric counting

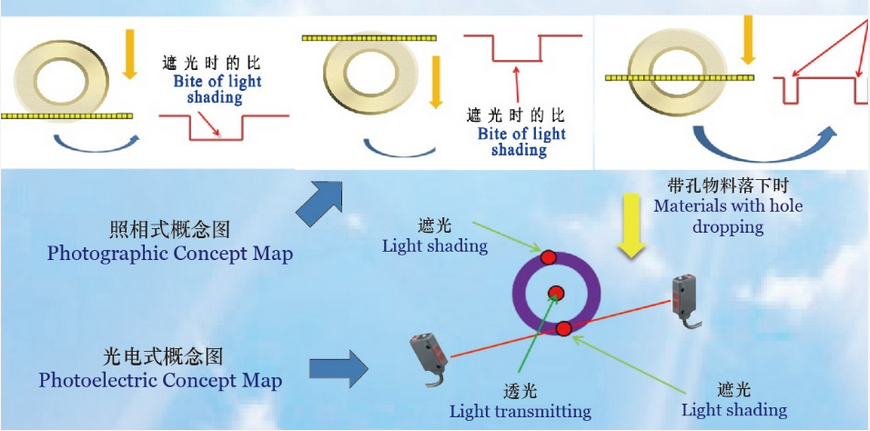

Comparison of photographic and photoelectric counting (material with holes)

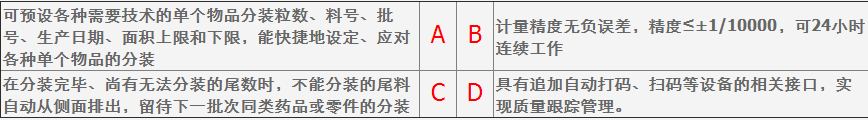

Main technical advantages
