Auto parts industry-multi-row high-speed counting machine
Release time:
2016-12-01 14:44
Classify:
Chemical industry
Visits:
Multi-line high-speed counting machine
The multi-column counter is a new generation counter developed by Shanghai Yamato with Japanese technology and CCD linear camera.
Compared with the traditional dual-channel simultaneous counting, the new-generation multi-column high-speed counting machine can count at most 8 areas at the same time, and can realize high-speed counting without increasing the number of cameras and controllers.
Features:
■ 8 areas are counted independently at the same time:
Use one camera to achieve simultaneous counting of up to 8 channels, each channel can count independently, and the speed is doubled compared with the previous dual channel method of large and small feeding.
■ Packing multiple varieties and different products in the same packaging bag:
The 8 channels can correspond to different products. Count different types of products separately and put them into the same packaging bag to achieve accurate mixing and packaging of different products in proportion.
■ Applicable materials:
1. Counting and packaging of capsules, pills, tablets and other drugs;
2. Counting and packaging of fine seeds such as vegetables and flowers;
3. Counting and packaging of fine buttons and accessories;
4. Counting and packaging of connectors, parts, fasteners, etc.;
5. Convenience store distribution centers such as frozen foods, breads, pastries, etc. are counted for delivery.

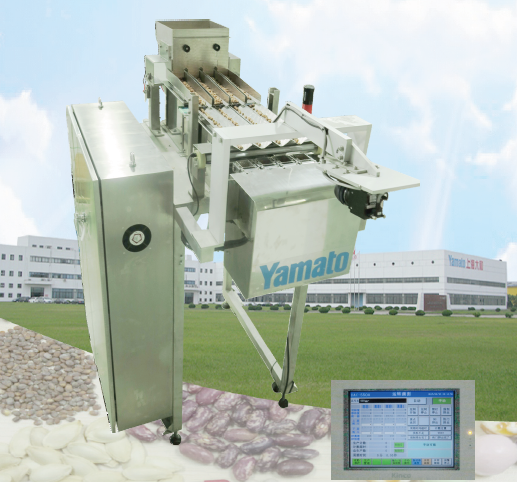

The picture above shows a 4-channel CCD linear camera counting machine

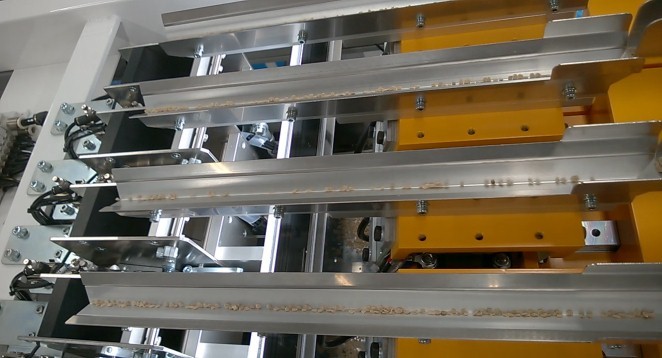

The picture above shows a linear CCD camera counting machine that is counting tomato seeds
■ Main technical specifications:
|
model |
DAC-5000S |
|
Number of channels |
4 |
|
Product size |
Φ 10 |
|
Number of grains per bag |
7 capsules |
|
ability |
5000 grains/min |
|
power supply |
AC220V±10%,50Hz |
|
power |
1KVA |
※Different materials have very different capabilities. The above-mentioned values are only reference values, not guaranteed capabilities.
The multi-column high-speed counting machine can provide solutions according to the actual needs of your company's products and the characteristics of the products provided by customers.
